Wilden 3 Dial 3 Way Concealed Thermostatic Shower Mixer Valve Black Matte

Key Features

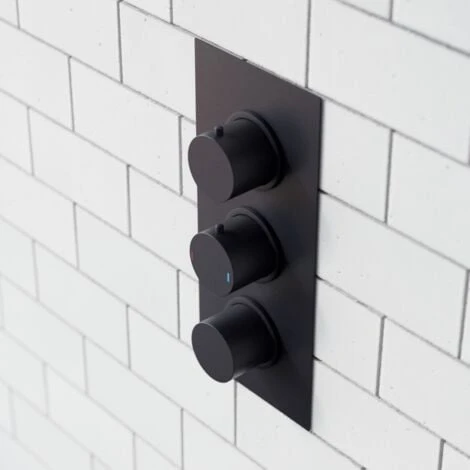

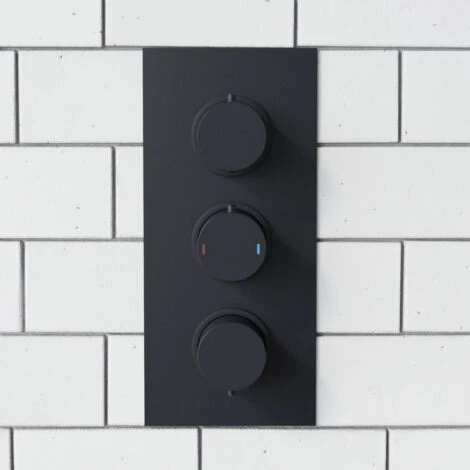

Thermostatic Concealed Valve Features

• Top dial – controls water to 2 outlet diverter
• Middle dial – temperature control
• Bottom dial – controls water to 1 outlet diverter
• High-Quality Design
• Matt Black Finish
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 – 50 deg C with 38 deg C safety button
• Built-in non-return valves to prevent backflow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

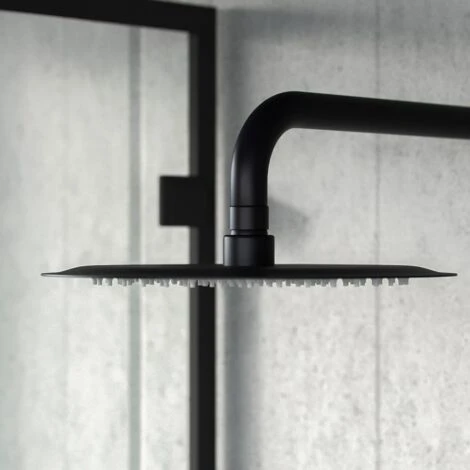

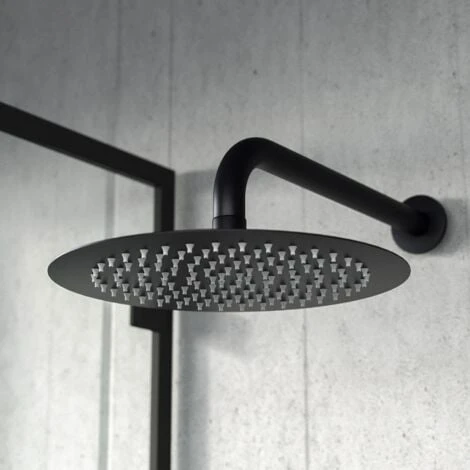

Shower Head and Arm

• Wall Mounted
• Easy clean anti-limescale rubber jets
• 250mm round slim shower head, with a high shine chrome finish
• Provides an even spray and full water coverage
• Swivel joint allows you to adjust the angle of the spray

Specifications

Thermostatic Concealed Valve Technical Information

Suitable for the following water systems:

• Combination boiler systems
• Gravity-fed systems (only with a pump)
• MegaFlo systems
• Pumped hot water systems
• Unvented hot water systems
• Standard pressurised hot water cylinder type systems

Bath Filler Push Button Waste

• Push button bath tub waste with connecting overflow
• Matte black design
• Combined bath filler and waste
• The overflow doubles as a bath filler tap and is connected to the waste by strong and sturdy plastic piping
• Easy to use – just press the waste and the waste pops up and allows the water to drain
• Modern design matte black finish
• Durable and solid brass construction
• Round Overflow Bath Filler
• Sprung Waste

• Style: Modern
• Material: Brass
• Finish: Matte black
• Shape: Round, Slim
• Minimum Pressure: 0.5
• Maximum Pressure: 7.0
• Inlet Connection Size: 3/4″
• Outlet Connection Size: 3/4″

Package Contents

• Bath Filler Push Button Waste
• Thermostatic concealed valve
• Shower Head and Arm
• Shower Handset

Warranty

• 10 Years
