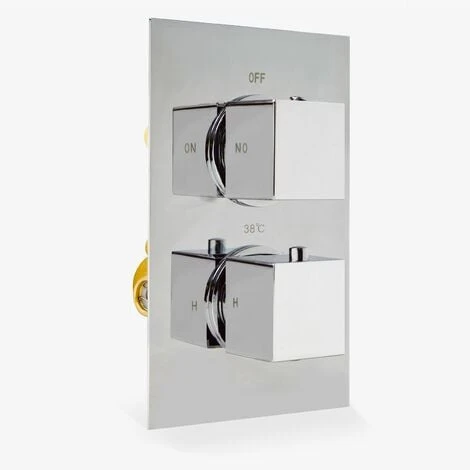

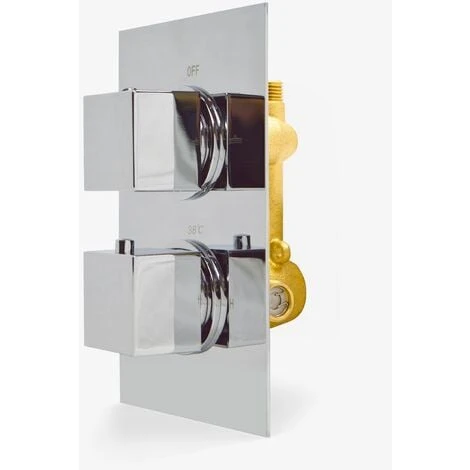

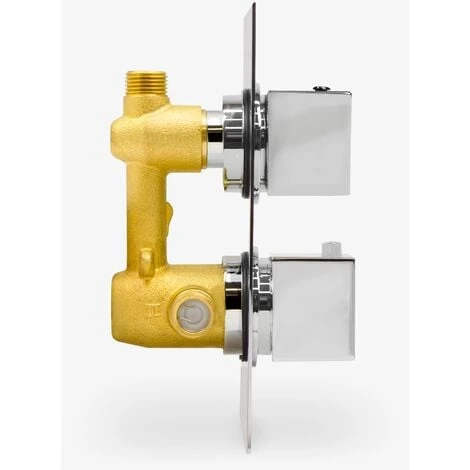

Temel Square 2 Dial 1 Way Chrome Concealed Thermostatic Shower Mixer Valve

Allows the control of a combination of 1 outlet.

They also come with a 10 Year Warranty for peace of mind.

Thermostatic Valve

• Top dial – diverter controls water to 1 outlet
• Bottom dial – temperature control
• High Quality Design
• Chrome Finish
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 – 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

Suitable For The Following Water Systems

• Combi-boilers
• Gravity Fed systems
• MegaFlow Systems
• Pumped systems
• Un-vented systems
• Pressurised cylinder systems
• Subject to a minimum of 1.0 bar water pressure

Package Contents

• Concealed Thermostatic Mixer Valve
