OLIVE 3 Dial 3 Outlet Concealed Thermostatic Shower – Square- Refined Valve

Specifications

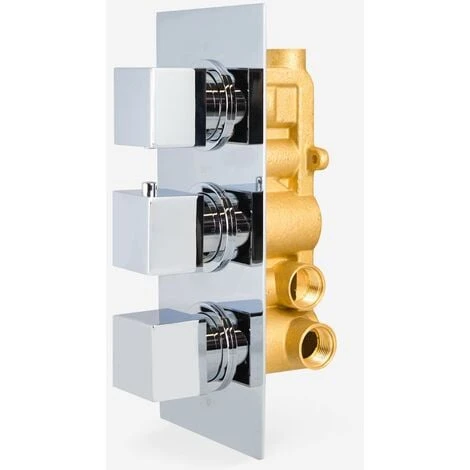

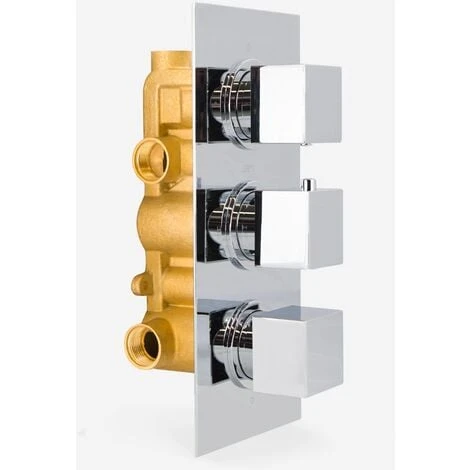

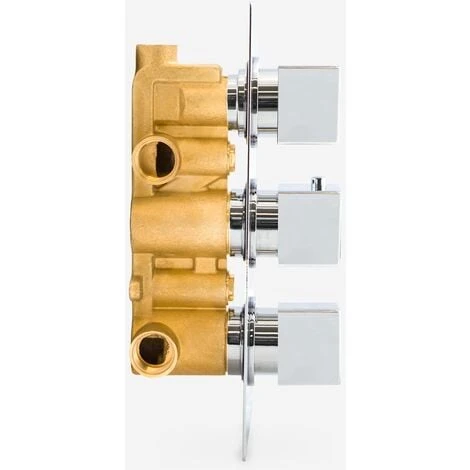

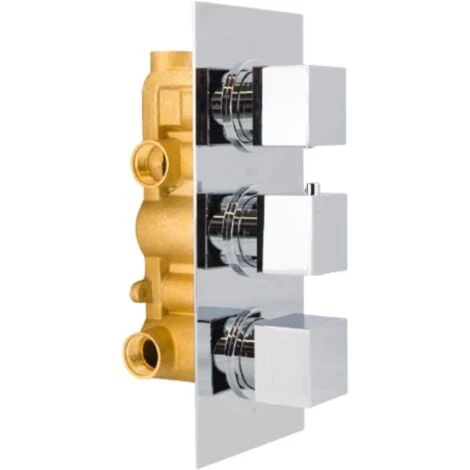

3 Dial Concealed Thermostatic Valve

• Top Dial – Controls water to 1 outlet diverter
• Middle Dial – Temperature Control
• Bottom Dial – Controls water to 2 outlet diverters
• High Quality Design
• Chrome Finish
• Thermostatically controlled
• Manufactured from highly durable brass
• Operating range 20 – 50 deg C with 38 deg C safety button
• Built in non return valves to prevent back flow and filters to protect the thermostatic mechanism
• Chosen temperature maintained to within +/-1ºC
• Pre-set maximum temperature
• Automatic shut off in event of water cold supply failure
• UK standard size fitting

Flow Rates (Litres per minute)

• 0.2 Bar – 7.5
• 0.5 Bar – 10.7
• 1.0 Bar – 15.0
• 1.5 Bar – 18.5
• 2.0 Bar – 21.5
• 3.0 Bar – 27.0

Suitable for the following water systems

• Combi-boilers
• Gravity Fed systems
• MegaFlow Systems
• Pumped systems
• Un-vented systems
• Pressurised cylinder systems
• Subject to a minimum pressure of 0.5bar to maximum 7.0bar

Package Contents

• Thermostatic Valve
• Face Plate
• Dials x 3
• Fittings
• Instructions
