- Width12.0 cm
- Height28.0 cm
- MaterialBrass
- FinishChrome-plated
- ShapeRectangular
- ColourWhite
- ManoMano ReferenceME7204459
- Warranty20 years
- Product codeTSVT003
Features and Benefits:
- Shower valve supplies water to 2 outlets
- Manufactured from high quality brass & ABS
- Combining the elegance of traditional styling with the precision and technology of modern day design
- Accurate flow control
- Thermostatic control to +/- 1 degree – even if the water pressure fluctuates
- Full thermal protection to prevent scalding in the event of hot or cold water shut off
- In the event of hot or cold water failure the valve will shut down within 1.5 seconds
- The patented cartridge is highly resistant to calcium build up – even in hard water areas
- Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
- Excellent flow rates – even at low pressure
- Triple handle valve only
- Our valves can deliver 5.5 litres per minute at 0.1 bar pressure
- The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn’t need re-plumbing
- Simply remove the cartridge turn 180 degree and replace
- TMV2, TMV3 and WRAS approved product
- Guarantee: 20 years against faulty workmanship or materials (1 year on serviceable and moving parts), please see manufacturer guarantee policy for more information
| Shower Type | Thermostatic |
|---|---|
| Shower Valve Controls | 3 |
| Shower Valve Position | Concealed |
| Valve Shape | Rectangular |
| Handle Type | Crosshead/Lever |
| Shower Valve Outlets | 2 |
| Minimum Pressure | 0.1 Bar |
| Maximum Pressure | 3.0 Bar |

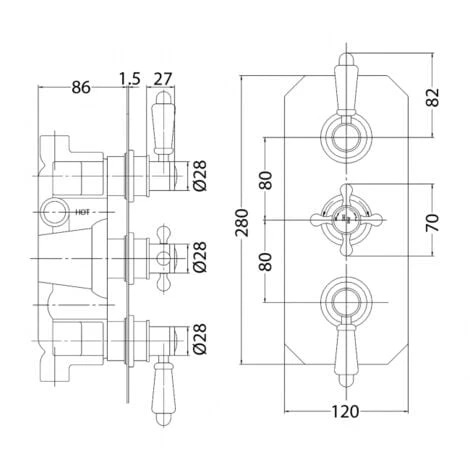

| Shower Valve Height | 280mm |
| Shower Valve Width | 120mm |
| Shower Valve Depth | 98mm |
| Inlet Connection Size | 22mm |
| Valve Orientation | Portrait |
| Material | Brass/ABS |
| Colour | Chrome/white |
| Brand | Hudson Reed |
| Collection | Topaz |
| Style | Traditional |
| Market | Domestic |
| Flow Rate – 0.1 Bar | 5.5 l/min |
| Flow Rate – 0.5 Bar | 13 l/min |
| Flow Rate – 1.0 Bar | 20 l/min |
| Flow Rate – 2.0 Bar | 29 l/min |
| Flow Rate – 3.0 Bar | 44 l/min |
| EAN Barcode | 5055275831595 |
| Manufacturer Part Number(s) | TSVT003 |
