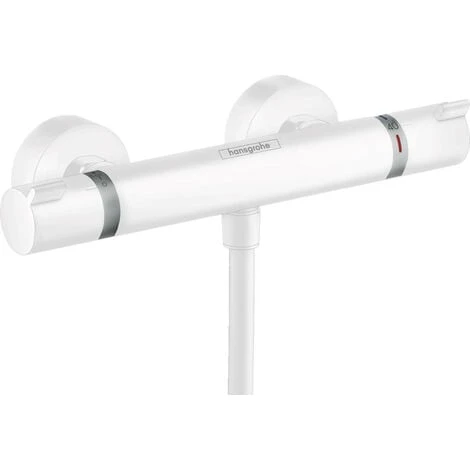

Hansgrohe Ecostat Comfort Thermostatic Shower Mixer, White Matt (13116700)

Features of Ecostat Comfort Thermostatic shower mixer, White matt (13116700) :

Its rotating handles make it possible to adjust the flow rate and temperature safely, even with soapy hands. The thermostatic mixer keeps the water at the desired temperature and prevents it from being too hot or too cold. A button on the handle only releases water at a temperature above 40° on demand and prevents the water temperature from being disturbed (SafetyStop).

.

Highlights:

• Save water without thinking about it: the flow rate is limited by default to 10 l/min. A button on the handle allows you to obtain the full flow rate at will (EcoStop)
• Very safe: an adjustable temperature limit prevents scalding
• Hygiene first: a non-return valve prevents waste water from flowing back into the drinking water pipe
• Quiet operation: an integrated silencer reduces the noise of the water in the pipes – for quiet operation

Technical information :

• Consists of: thermostatic bath mixer
• spout 177 mm long
• designed to run 2 outlets
• exposed design allows easy installation, all working parts are outside of the wall

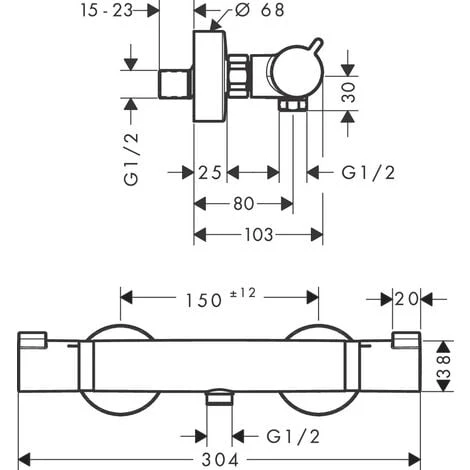

• Centre distance: 150 mm ± 12 mm
• Spray type mixer: normal spray
• Flow rate for bath spout (at 3 bar): 20 l/min
• Flow rate of hand shower (at 3 bar): 16 l/min
• minimum flow pressure: 1 bar
• Min. operating pressure: 1 bar
• Max. operating pressure: 10 bar
• thermostat cartridge, shut-off/ diverter valve
• safety stop at 40°C
• Maximum temperature can be adjusted on installation
• Non-return valve
• with silencer
• Material handles: metal
• dirt filter included
• WRAS 1805046
